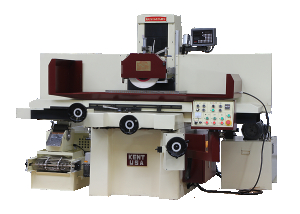

KENT USA KGS 620 SD1 surface grinding machine
No rating
12 months of warranty
KENT USA KGS 620 SD1 automatic surface grinding machine equipped with a Siemens PLC controller and a Siemens servomotor responsible for controlling the vertical movement of the headstock (Z axis). Automatic vertical feed of 0.001-0.1mm/pass and 0.01 pitch for transverse feed (Y-axis) provide the ability to perform rough grinding, finishing and sparking in one work cycle. Z axis ball screw - Taiwanese production, Y axis ball screw - Chinese production.
Quantity
Add to cart
The KENT USA KGS 620 SD1 automatic surface grinder uses the Siemens + MPG PLC controller and is a machine with the ability to program a full cycle of detail grinding. Extended versions of KGS AHS grinders, equipped with a touch control panel, are available in two basic versions:
KGS SD1 - Grinding machine equipped with a PLC controller and a servomotor responsible for controlling the vertical travel of the headstock. Automatic vertical feed of 0.001-0.1mm/pass provides the ability to perform rough grinding, finishing and sparking out in one work cycle.
KGS SD2 - Grinding machine equipped with two servo motors that operate the vertical feed of the headstock and the transverse feed of the working table. Thanks to the automatic transverse feed with the possibility of a precise feed of 0.001mm/pass, it is possible to precisely grind the vertical edges of the detail, grooves or grooves.
Each KGS grinder, equipped with a hydraulic drive for longitudinal travel of the working table, can be available in the SD1 or SD2 version.
Small workpieces may be less well held by an electromagnetic table with a standard pitch. In order to ensure proper holding of small workpieces, an electromagnetic table with a smaller pitch (option) should be used.
Standard equipment:
- Grinding wheel
- Rear guard
- Electromagnetic table
- Automatic feed for 2 axes
- MPG knob
- Vertical and transverse feed ball screw
- Microfeed
- Static wheel balancer
- CE declaration of conformity
- User manual in English
Optional equipment (additionally payable):
- Sustaining the table's operation in the event of a power failure - UPS
- Device for parallel dressing of the grinding wheel
- Device for dressing the grinding wheel at an angle
- Basic magnetic separator
- Magnetic separator with coolant pump and paper filter
- Digital readout for 2 axes
| Technical data | Unit | Value |
|---|---|---|
| The width of the table | [mm] | 600 |
| Table length | [mm] | 2000 |
| Longitudinal feed | [mm] | 2230 |
| Cross feed | [mm] | 660 |
| Distance from the table surface to the spindle axis | [mm] | 600 |
| Maximum table load | [kg] | 1500 |
| T-slot for table clamping | [mm] | 3 x 16 |
| Table speed | [m/min] | 7 - 25 |
| Transverse travel per 1 division of the vernier scale | [mm] | 0,02 |
| Transverse travel per revolution of the wheel | [mm] | 5 |
| Transverse automatic feed per cut (SD1) | [mm] | 0,5 – 12 |
| Transverse automatic feed per cut (SD2) | [mm] | 0,002 |
| Accelerated cross feed | [mm/min] | 1250 |
| Grinding wheel size | [mm] | 355 x 50 x 127 |
| Spindle rotation | [rpm/min] | 0 - 1450 |
| Feed per revolution of the MGP wheel | [-] | 0,5 |
| Minimal automatic vertical feed | [mm] | 0,005 – 0,04 |
| Main engine power | [kW] | 7,5 |
| Hydraulic pump motor power | [kW] | 5,5 |
| Coolant pump motor power | [W] | 90 |
| Cross feed motor power | [W] | 370 |
| Floor area occupied | [mm] | 6200 x 2700 |
| Weight | [kg] | 8500 |
